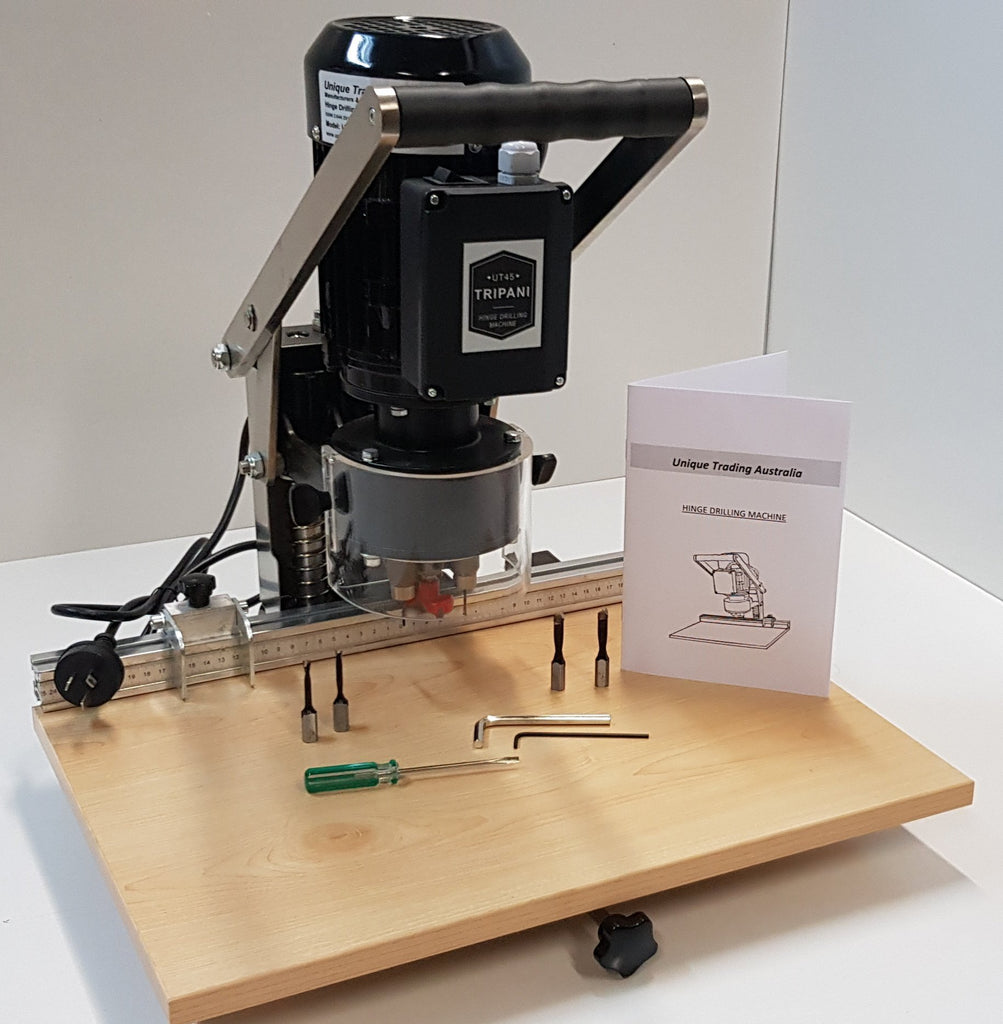

Hinge Drilling Machine - Tripani UT45B - suit Blum style hinges (Drill pattern 45mm x 9.5mm)
Portable, simple to use hinge drilling machine. Single phase motor. Suitable for workshop or site use. Drill holes for hinges with either 2mm pilot holes, 5mm, 8mm and 35mm cup drill. With purchase of optional 10mm dowel drill bits, also drill 10mm dowel holes. Drill mounting plate holes and/or adjustable shelf holes on kitchen cabinets and joinery items. Can also drill drawer front holes for some applications.
Perfect machine for smaller to medium sized cabinet making business. This machine brings factory capability to any site. Precision drilling every time, eliminating free-hand guess work. Easy to read calibrated back fence with adjustable stops, depth adjustment and rear fence depth adjustment. One hand drilling motion. Self start/stop operation.
Optional gearbox accessory (purchased separately) can be used to drill other brand hinges, eg. Hettich style and some European style drilling setbacks.
- Hinge drilling machine suitable for use with Blum type hinges
- 1 x 35mm left hand cup drill
- 2 x 2mm right hand pilot hole drill bits plus adaptors
- 2 x 5mm right hand dowel drill bits
- 2 x 8mm right hand dowel drill bits
- Calibrated rear fence
- Adjustable rear fence stop
- Work base
- Accessory tools (as shown)
- Instruction manual
